Ignition Coil 12 Volt (Genuine Lucas 47276)

Ignition Coil 6 Volt (Genuine Lucas 47275)

Ignition Coil 6 Volt (Genuine Lucas 47275) PAIR

Ignition Coil 12 Volt (Genuine Lucas 47276)

Brand: Lucas

Product Code: IC27

Price: $69.95

Available Options

Plug Lead (HT Lead) Option:
Plug Lead (HTL1) (+$12.50)

Plug Cap Options:
Plug Cap (LB05F1) (+$12.50)

Qty: - +

Add to Wish List Add to Compare Ask Question Email a Friend Download PDF

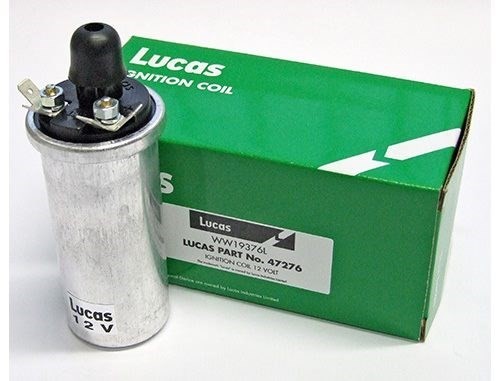

12 Volt Single Output Ignition Coil.

GENUINE Lucas part no. 47276

As fitted to 12V British Singles and Twins with 12 volt electrics.

Applications:

British Single Cylinder motorcycles with 12 volt electrics and points or Sure-Fire/True-Fire electronic ignition system (one coil required)
British Twin Cylinder motorcycles with 12 volt electrics and original points ignition (two coils required)

For twins with Sure Fire/Altair electronic ignition systems, we recommend two 6 volt coils, or one 12 volt dual output coil (IC33/IC35).

Electrical specification:

Primary resistance: 4 ohms +/- 10%
Secondary resistance: 10 Kohms +/- 10%
Low tension connections: two M5 studs
High tension connection: 7mm female connector

Accesories included: ht outlet cover, four 6.35mm(1/4") male lucar (spade) terminals, two spring washers & two nuts

Dimensions:

Diameter: 1 5/8" (41mm) approx.
Overall length: 4 3/8" (111mm) approx.
Body Length (to flange): 3.3" (84mm) approx.
Flange diameter: 1.9" (48mm) approx.
HT outlet length: 0.55" (14mm) approx.

Weight: 310g (approx.)
