Altair Triumph/Bsa/Norton Twin Ignition System

Is your current ignition not letting your bike reach its full potential?

Need an advance curve that better suits your engine?

Does your bike not want to fully rev out due to poor spark energy?

Is your battery not lasting a full race meeting?

The PAZON Altair ignition system is the hassle-free solution to your ignition worries.

Fits these classic motorcycles:

TRIUMPH/BSA Twin Cylinder Motorcycles with
12 Volt electrics (positive or negative ground)
and  twin points in the side casing, including:
Triumph Bonneville/Tiger T100/110/120/140/140V/140E

BSA Twin Cylinder Motorcycles with
12 Volt electrics (positive or negative earth)
&  twin points in the side casing, including:
BSA A50/A65

NORTON 750/850 Commando

Also ideal for electric start models.

Completely replaces the original points, condensers & mechanical advance.
The result is improved performance, excellent starting, smoother running and low maintenance.

7½ year warranty

Is your engine power limited by your current ignition advance curve?

The Altair ignition incorporates a mapped advance curve that precisely controls the ignition timing throughout the rev range, featuring idle stabilisation.

Have you found setting the timing on your current ignition system a bit 'hit and miss'?

Timing made easy, with the on-board static timing light.

Is your existing ignition system battery-thirsty?

The Altair features active dwell control that maintains the right energy in the ignition coils for optimum performance, whatever the engine rpm.
The intelligent software also means that Altair is highly efficient, drawing little power, extending battery life considerably.

High spark energy and lower power draw, even at low battery voltages.

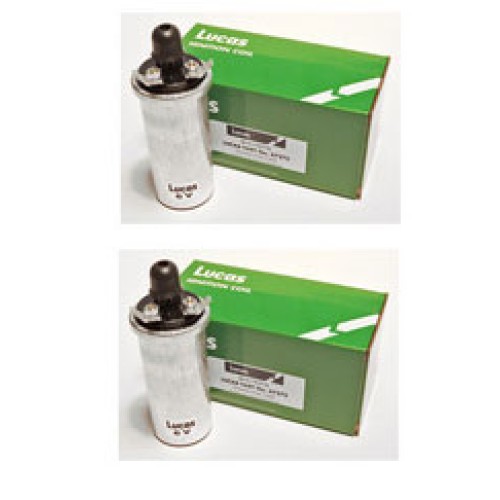

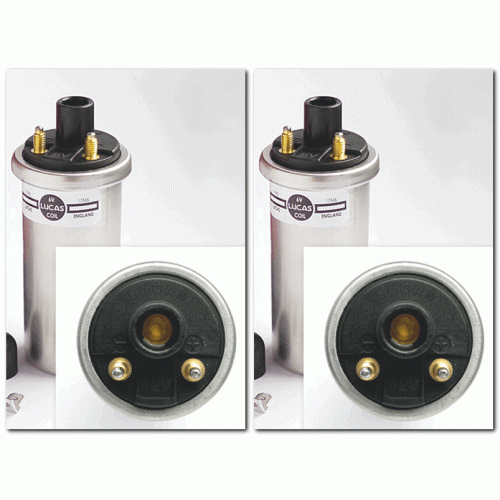

Two 6 Volt Lucas coils

or

Pazon 12 volt Dual Ouput Coil (3 ohm)

AL2.pdf
